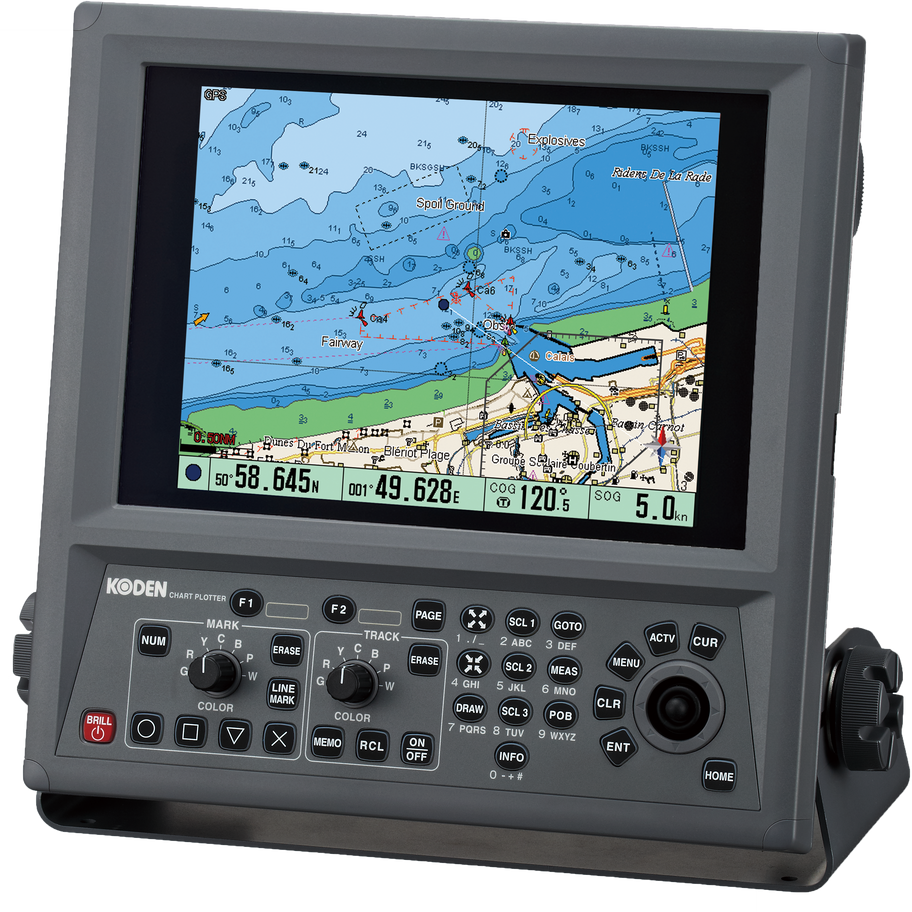

Koden GDT-120 Chart Plotter
Overview
The GDT 120 is a high-performance marine display and navigation system designed to provide clear, reliable information for safe and efficient navigation. Its advanced features make it ideal for professional and recreational vessels alike.
Key Features
- 10.4 inch High brightness LCD.
- User-friendly Operation.
- Various display screen such as Bird view and dual range display.
- SD card capable, save user data such as marks, tracks and settings.
- Various marks and greater numbers of ship’s tracks.
- Useful information display in the information window on the screen.
- AIS display function.
- C-Map MAX chart Ready (Chart: Owner supplied)
Technical Specifications
| Specification | Details |
|---|---|
| Display Size & Type | 10.4-inch color TFT LCD |
| Display Resolution | 480 × 640 (VGA) |
| Map Mode | Mercator projection |
| Zooming Range | 0.01 to 1,000 NM (0.02 to 2,000 km) |
| Plotting Interval | 1, 2, 5, 10, 20, 30, 60, 120, 300, 600 sec |
| Track & Mark | 7 colors, up to 20,000 points |
| Power Supply & Consumption | 10.8–31.2 VDC, ≤25 W |
| Operating Temperature & Protection | -15°C to +55°C, IPX5 |
