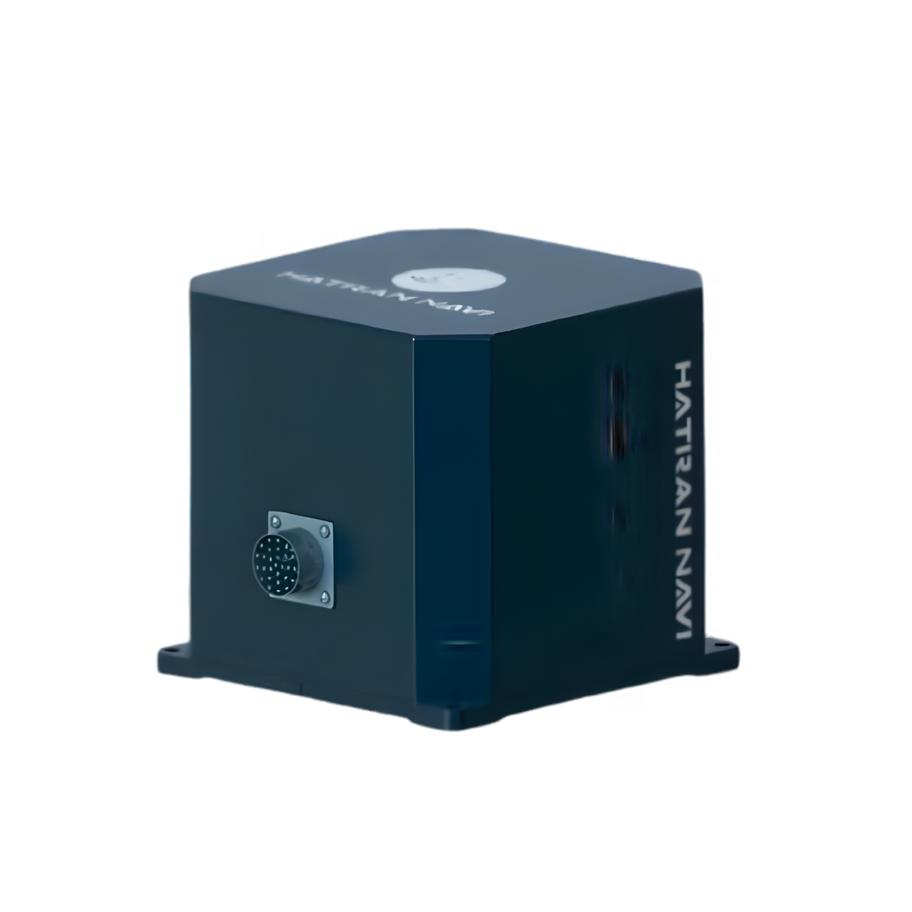

Hatran Fibre Optic SINS-FOG-C001
Overview
SINS-FOG-C001 Fiber Optic Gyro-Compass is a new generation of optical gyrocompass system based on a fiber optic gyro, which consists of: a three-axis integration fiber optical gyroscope a three-axis accelerometer and a resolution unit, and independently measures the 6 DOF motion of a carrier.
Download:
Brochure
Key Features
-
Fully solid design – no moving parts
-
Longer service life, no regular maintenance
-
Can rotate at any angle
-
Quick startup at dock (≈10 minutes)
-
Smaller, lighter, and lower power consumption
-
High cost-performance for civil use
-
Can switch with ship’s existing electric gyrocompass
Technical Specifications
| Specification | Details |
|---|---|
| Heading Accuracy | ≤ 0.75° sec |
| Pitch and Roll Accuracy | ≤ 0.3° |
| Speed Accuracy | ≤ 0.1 m/s |
| Input Information | GPS or Beidou |
| Settling Time (Docked) | ≤ 10 minutes |
| Settling Time (At Sea) | ≤ 20 minutes (stable speed & heading for 5 min) |
| Settling Time with GPS or Beidou | Stable speed & heading for 10 minutes (with DVL) |
| Interface | RS422 – 3-way (extensible) |
| Weight | < 6 kg |
| Dimensions | 170 mm × 170 mm × 160 mm |
| Power Supply | DC 24V (20–32 V) |
| Power Consumption | ≤ 20 W |
